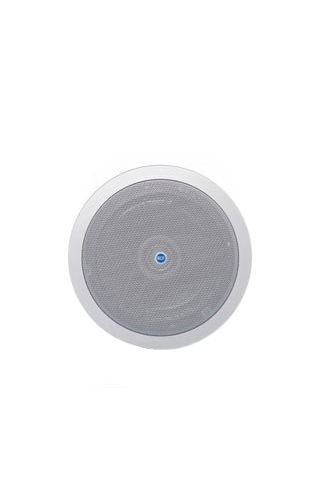

podhledový reproduktor kruhový, 3,5”, 8 W/100 V, 88 dB, 130×110 mm, 7 mm nad povrch, otvor 122 mm, IP44, plast/kov, bílý

Ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels.

Incorporate an 86 mm-3.5” a full range speaker. The speakers are equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make it possible to select the output power from among several values.
Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.

Features:

• Recommended for speech and background-music reproduction
• Music power/RMS: 16/8W
• Low impedance (8ohm) or 100V
• 3.5" full range speaker
• Three hooks mounting system (no screws or other attachment elements)
• Built-in multi-tapped transformer for constant voltage connection
• Body in self-extinguishing (UL 94V-0) plastic and front metal grille RAL 9003 White


Acoustical Specifications:

• Type of speaker: Ceiling
• Frequency Response: 90 Hz ÷ 20 kHz
• Max SPL @ 1m: 100 dB
• Horizontal coverage angle: 120°
• Vertical coverage angle: 120°
• Power Handling: 8 W RMS
• Peak Power Handling: 16 W PEAK
• System Sensitivity: 88 dB
• Impedance: 8 ohm
• Protections: IP 44


Transducers:

• Speaker: 3.5"

Input Section:

• Input connector: 5 pin terminal block
• Constant voltage: 100 V / 70 V
• Power Selection: 8 - 6 - 4 - 2 W (100 V)


Cabinet:

• Hardware: Plastic material
• Colour: White
• Grille: Steel


Physical Specifications:

• Height: 110 / 4.33 mm/inch
• Width: 130 / 5.11 mm/inch
• Depth: 130 / 5.11 mm/inch
• Net weight: 0.88 / 1.94 kg/lbs


Shipping information:

• Package height: 120 / 4.72 mm/inch
• Package width: 175 / 6.88 mm/inch
• Package depth: 175 / 6.88 mm/inch
• Shipping weight: 1.2 / 2.64 kg/lbs
